SCARA

SCARA robots

0.3 to 1.2 m reach
5 to 20 kg payload
speeds up to 9.5 m/s
Prices start at $9,500 (includes install fee)

SCARA Robot models – (Expand for details)

Downloads:

THE and THL SCARA Brochure (software & controller overview)

TH series SCARA Brochure

THE Series – 400-1000 mm, 5-20 kg

THE400 (5 kg)

400 mm reach, 160 mm Z axis, 5 kg payload, 7 m/s
Repeatability is ±0.01 mm (XYZ), ±0.007º on axis C
Standard cycle time: 0.39 sec (2 kg payload)
2.5 kVA, 8 in 8 out

THE600 (12 kg)

600 mm reach, 210 mm Z axis, 12 kg payload, 8 m/s
Repeatability is ±0.01 mm (XYZ), ±0.005º on axis C
Standard cycle time: 0.31 sec (2 kg payload)
4.3 kVA, 8 in 8 out

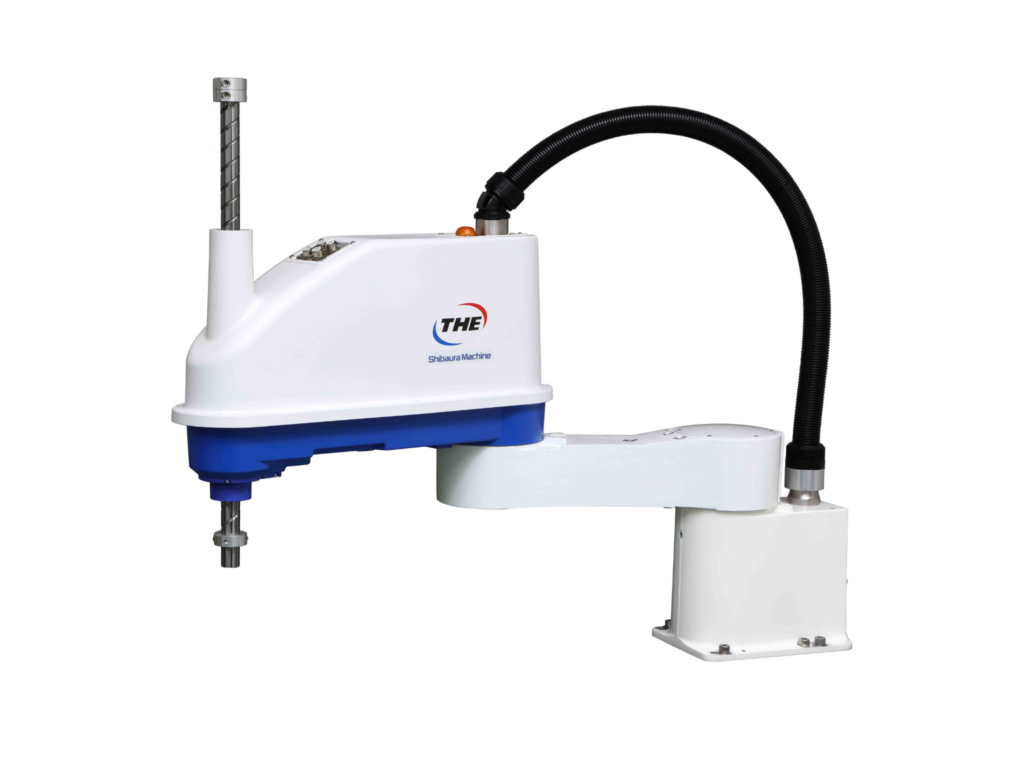

THE800 (20 kg)

800 mm reach, 420 mm Z axis, 20 kg payload, 8.4 m/s
Repeatability is ±0.025 mm (XY), 0.01 mm (Z), ±0.001º on axis C
Standard cycle time: 0.41 sec (2 kg payload)
4.3 kVA, 8 in 8 out

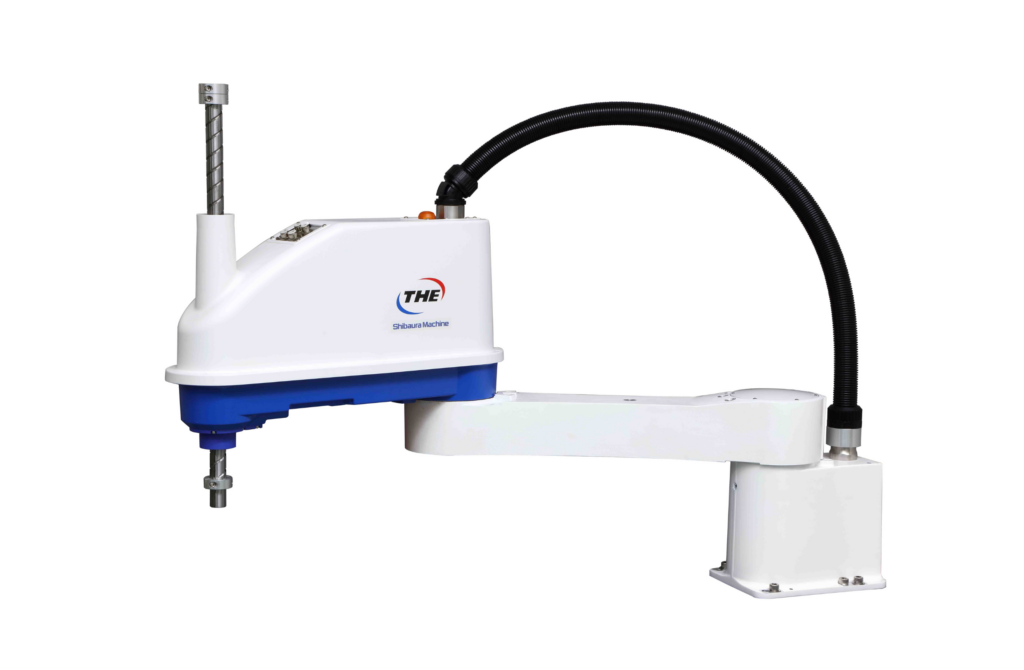

THE1000 (5 kg)

1000 mm reach, 420 mm Z axis, 20 kg payload, 9.5 m/s
Repeatability is ±0.025 mm (XY), 0.01 mm (Z), ±0.001º on axis C
Standard cycle time: 0.41 sec (2 kg payload)
4.3 kVA, 8 in 8 out

THL Series – 300-1200 mm, 5-10 kg

THL300 (5 kg)

300 mm reach, 160 mm Z axis, 5 kg payload, 5.1 m/s
Repeatability is ±0.01 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.48 sec (2 kg payload)
0.7 kVA, 8 in 8 out

THL400 (5 kg)

400 mm reach, 160 mm Z axis, 5 kg payload, 6.3 m/s
Repeatability is ±0.01 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.45 sec (2 kg payload)
1.4 kVA, 8 in 8 out

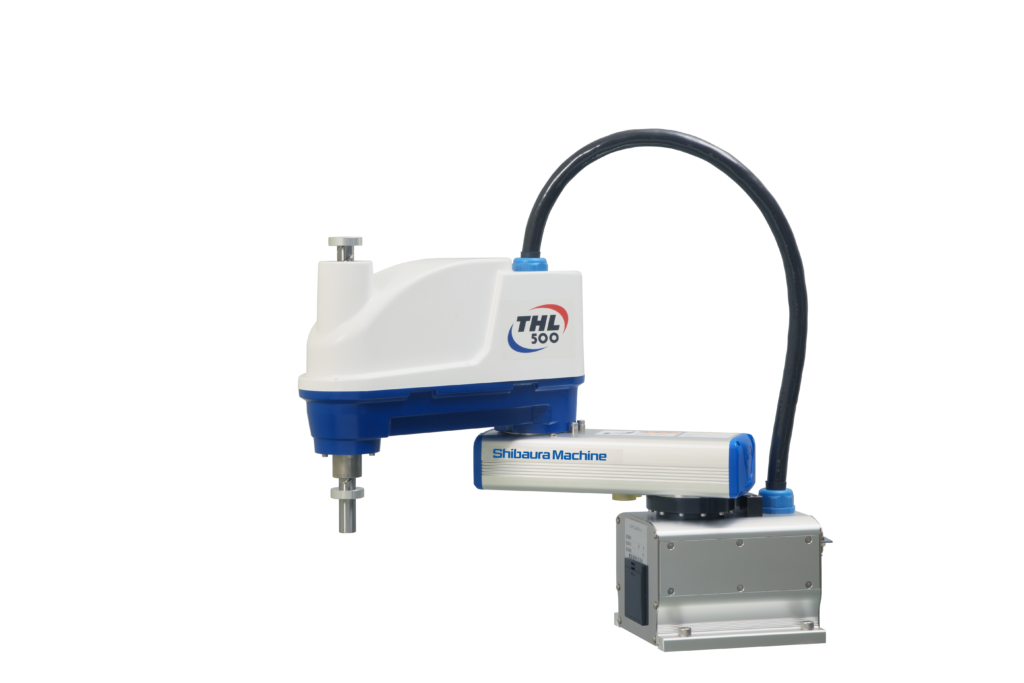

THL500 (10 kg)

500 mm reach, 150 mm Z axis, 10 kg payload, 6.3 m/s
Repeatability is ±0.01 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.45 sec (2 kg payload)
1.4 kVA, 8 in 8 out

THL600 (10 kg)

600 mm reach, 150 mm Z axis, 10 kg payload, 7.1 m/s
Repeatability is ±0.01 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.45 sec (2 kg payload)
1.4 kVA, 8 in 8 out

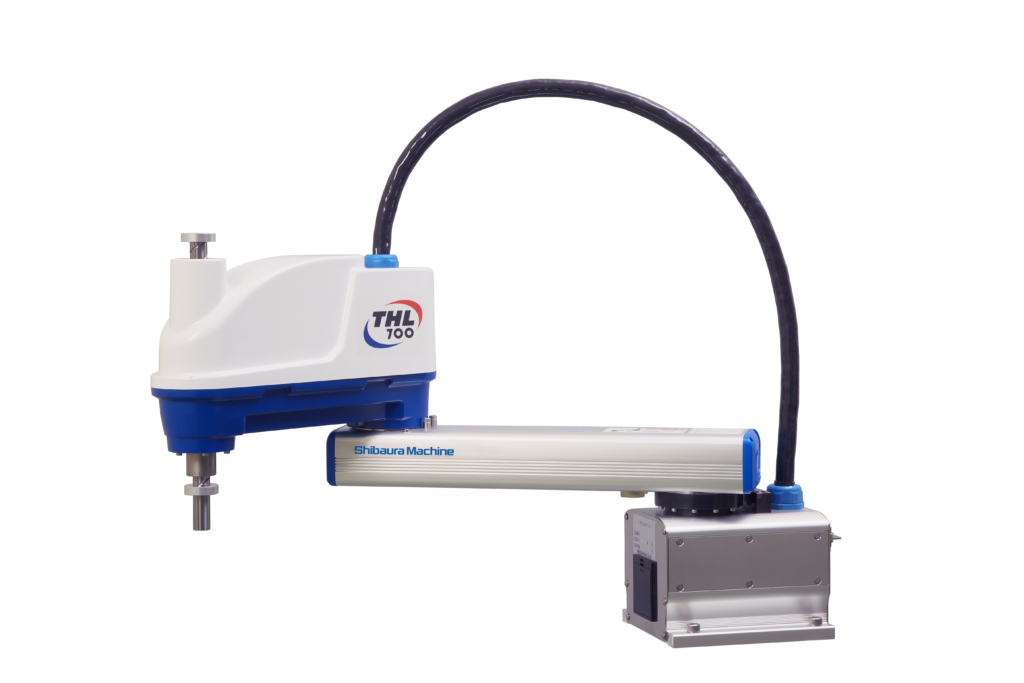

THL700 (10 kg)

700 mm reach, 150 mm Z axis, 10 kg payload, 7.9 m/s
Repeatability is ±0.01 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.5 sec (2 kg payload)
1.4 kVA, 8 in 8 out

THL800 (10 kg)

800 mm reach, 300 mm Z axis, 10 kg payload, 4.3 m/s
Repeatability is ±0.02 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.47 sec (2 kg payload)
1.4 kVA, 8 in 8 out

THL900 (10 kg)

900 mm reach, 300 mm Z axis, 10 kg payload, 4.6 m/s
Repeatability is ±0.02 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.48 sec (2 kg payload)
1.4 kVA, 8 in 8 out

THL1000 (10 kg)

1000 mm reach, 300 mm Z axis, 10 kg payload, 5.0 m/s
Repeatability is ±0.02 mm (XY) ,±0.015 mm (Z) ±0.007º on axis C
Standard cycle time: 0.48 sec (2 kg payload)
1.4 kVA, 8 in 8 out

THL1200 (10 kg)

1200 mm reach, 300 mm Z axis, 10 kg payload, 5.7 m/s
Repeatability is ±0.05 mm (XY) ,±0.03 mm (Z) ±0.014º on axis C
Standard cycle time: 0.58 sec (2 kg payload)
1.4 kVA, 8 in 8 out
