Articulated 6 axis robots
6 Axis articulated options – (Expand for details)
Model Downloads:
TVM Series – Longer reach, highest payloads
Prices start at $40,000 (Includes installation fee)
TVM900
TVM900 – 1,142 mm reach, 20 kg payload, 8.7 m/s
Repeatability is ±0.05 mm (XYZ)
TVM1200
TVM1200 – 1,432 mm reach, 15 kg payload, 10.7 m/s
Repeatability is ±0.05 mm (XYZ)
TVM1500
TVM1500 – 1,726 mm reach, 10 kg payload, 12 m/s
Repeatability is ±0.05 mm (XYZ)
TV Series – Medium reach, 5 – 10 kg payloads
TV800
TV800 – 892 mm reach, 5 kg payload, 8 m/s
Repeatability is ±0.02 mm (XYZ)

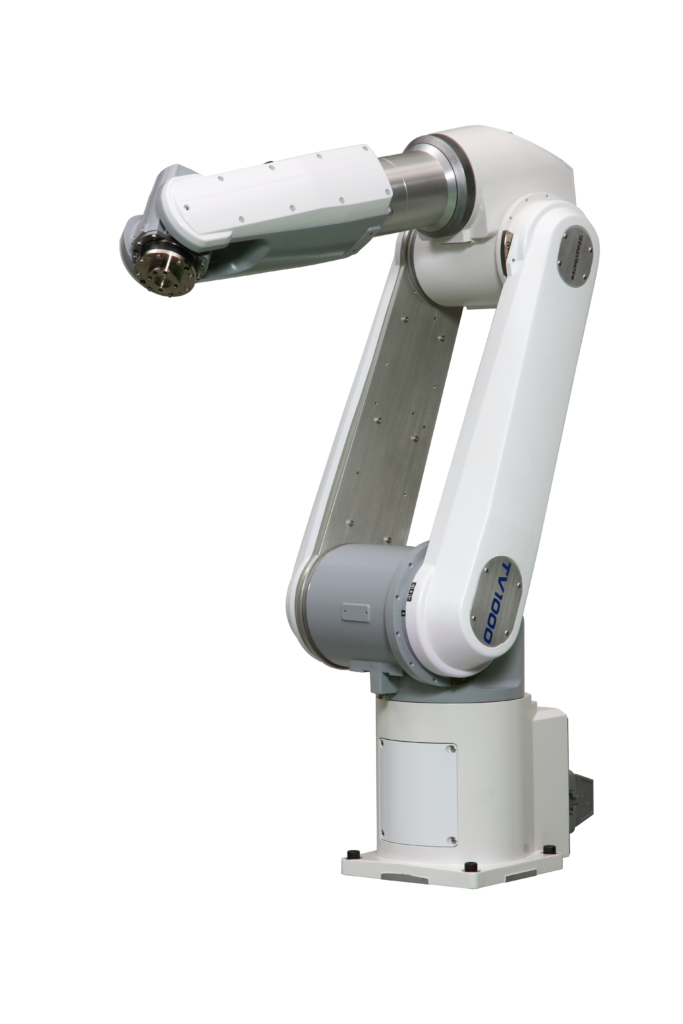

TV1000
TV1000 – 1,090 mm reach, 5 kg payload, 9.61 m/s
Repeatability is ±0.03 mm (XYZ)
TV1000H
TV1000H – 1,090 mm reach, 10 kg payload, 7.46 m/s
Repeatability is ±0.03 mm (XYZ)
TVL Series – shorter reach, lower payloads

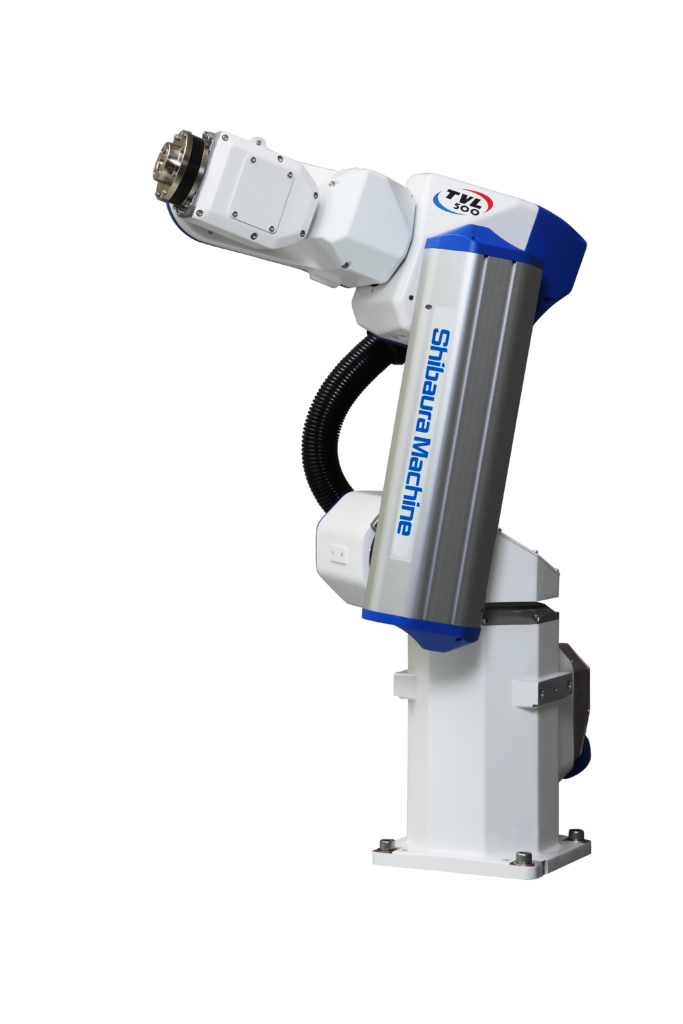

TVL500 – 3 kg
TVL500 – 602 mm reach, 3 kg payload, 7.98 m/s
Repeatability is ±0.02 mm (XYZ)

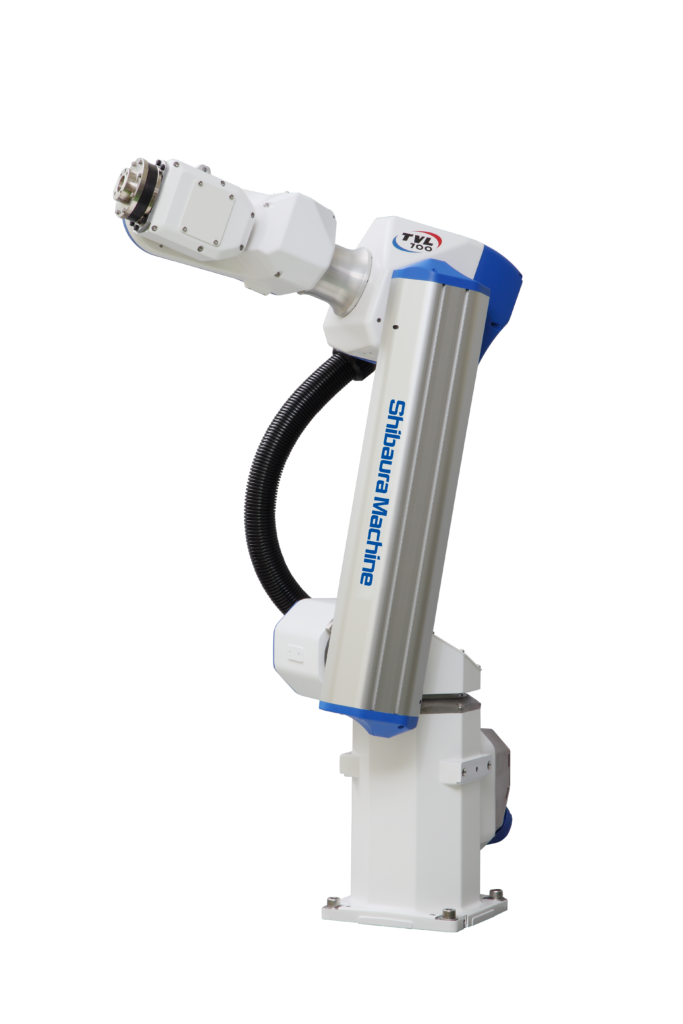

TVL700 – 4 kg
TVL700 – 801 mm reach, 4 kg payload, 7.71 m/s
Repeatability is ±0.03 mm (XYZ)
